Professional Conference Motorized Pop up Monitor Hidden Desk Lcd Monitor Lift Mechanism

Name: Professional Conference Motorized Pop up Monitor Hidden Desk Lcd Monitor Lift Mechanism
Brand: Boente
Price: 1 USD

Wholesale Professional Conference Motorized Pop up Monitor Hidden Desk Lcd Monitor Lift Mechanism from china suppliers

Type : Audio Conference System, Network Conference System, Video Conference System, Conference System

Function : Presentation

Simultaneous Interpretation : NO

Place of Origin : Guangdong, China

Brand Name : Boente

Model Number : AML-15.6MS

Product Name : hidden desk lcd monitor lift mechanism

Material : aluminum alloy

Color : Silver / Black

Monitor : 15.6inch FHD screen (16:9)

Monitor size for selection : 13.3/15.6/17.3/18.5/21.5/23.6 inch

MIC Lifting : Together/ Separate with screen

Panel Size : 615*80*5mm

Box Size : 602*71*730mm

Pitch Angle : 20 degree

Interface : H-DMI+RS232 I/O+USB+XRL

Contact Now

Product Description

Introduction:
BNT pop up monitor is designed as advance hiding equipment with FHD screen and built in microphone for audio video conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size.

Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.

Model No.	AML-13.3M	AML-15.6M	AML-17.3M	AML-18.5M	AML-21.5M	AML-23.6M
Monitor	13.3 inch FHD screen	15.6 inch FHD screen	17.3 inch FHD screen	18.5 inch HD screen	21.5 inch FHD screen	23.6 inch FHD screen
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
MIC Lifting Type	Together/ Separate	Together/ Separate	Together/ Separate	Together/ Separate	Together/ Separate	Together/ Separate
Panel Size	585805mm	615805mm	655805mm	680805mm	765805mm	790805mm
Box Size	460145655mm	525147650mm	575147650mm	655147650mm	75271730mm	77271730mm
Monitor Pitch Angle	20 Degree	20 Degree	20 Degree	20 Degree	20 Degree	20 Degree
Adjustable Angle	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree
Panel Color	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver
Interface	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O
Protection System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System

Professional Conference Motorized Pop up Monitor Hidden Desk Lcd Monitor Lift Mechanism

The motorized monitor lift has the above two colors to choose from, of course, you can also choose the color you want to customize. For more information, please contact customer service.

Details Images

Conference system solution

Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video

conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different
monitor size. Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.

Standard English language operating system, other national languages can be set as needed.

Full aluminum alloy design

Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, )

Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically.

Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.

Screen pitch angle 0-30 degree

Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection.

The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

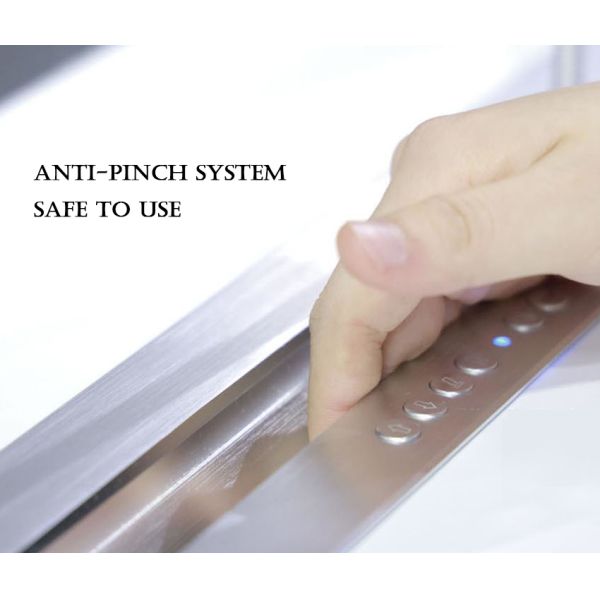

Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.

Buttons

Buttons on panel.

1. With buttons for monitor to lift up /down

2.With buttons for adjust the monitor tilt angle forward/backward you want

3.With button for setup menu(brightness of the monitor, color, language, etc)

4. With buttons for switch the VGA/HDMI input signal(When there are HDMI and VGA 2 way signal input)

Buttons on panel.

With USB connectors on panel, could add one USB more.

With power switch on panel, for monitor power on/off

Buttons on the panel all supported customized made.

Connectors on lift case

VGA/HDMI for video input, USB connectors for data input or touch screen, RS232/RS485 for central control, Colorful cable coil for computer switch extension cable (Red & black for LED, Yellow & green for switch)

Optional Integration

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.

Optional with touch screen.

With built in microphone

(monitor&mic work together/separately)

With built in double screen

(front & back screen same size)

With built in PC computer

(for paperless conference system)

With built in back 10.1" screen

(for name display)

With built in front camera

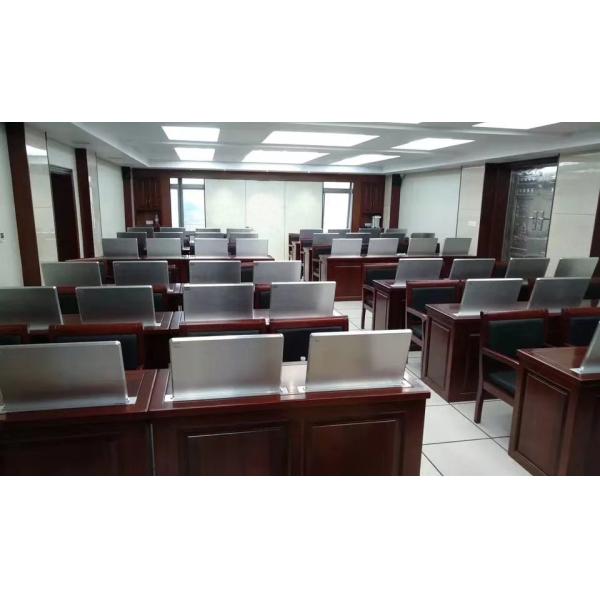

Engineering Case

Conference AV solution with BNT LCD Monitor Lifts

BNT could offer one stand conference system solution devices

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.

→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.

→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
